Integrated Manufacturing of Fluid Manifolds Using Metal 3D Printing

Introduction

Fluid manifolds are crucial components that connect multiple fluid channels, guiding the flow within systems that include valves, pumps, and actuators. The advent of additive manufacturing (AM), specifically SLM metal 3D printing, has significantly advanced the production of these complex hydraulic parts. This technology excels in creating internal features and channels with a high degree of design freedom, making it ideal for manifold fabrication.

Challenges with Traditional Manufacturing

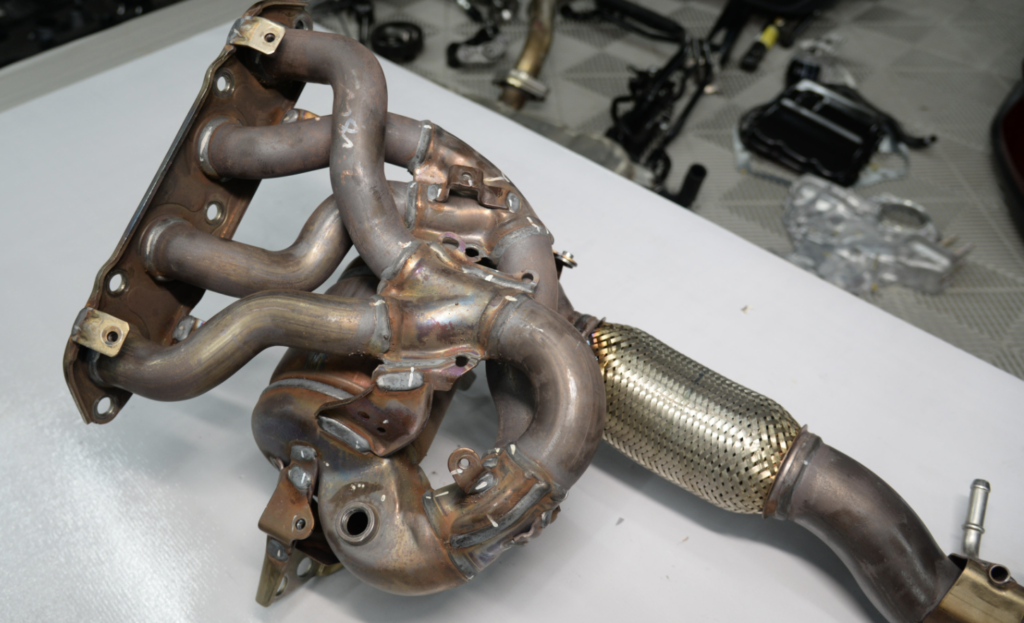

Traditional methods involve machining a solid metal block into the desired shape and drilling pathways for fluid flow. This process is limited by the following factors:

• Precision Issues: Achieving accurate internal pathways is challenging, especially for complex designs.
• Design Constraints: Drill positions are dictated by machining ease rather than optimal functionality, often resulting in less efficient fluid flow.
• Flow Efficiency: Sharp angles from intersecting drilled holes cause turbulence and flow resistance, reducing system efficiency.

Advantages of 3D Printed Fluid Manifolds

3D printing offers several benefits over traditional methods:

• Smooth Internal Channels: Enables the creation of curved, smooth internal pathways that minimize turbulence and enhance flow efficiency.
• Design Freedom: Complex geometries can be designed without the constraints of traditional machining.
• Rapid Iteration: Prototypes can be quickly produced and tested, accelerating the development process.
• Material Efficiency: Reduces waste by depositing material only where needed.

ProtoTi’s Innovative Solutions: ProtoTi has leveraged PEP (Precision Engineering Printing) technology to collaborate with clients and redesign traditional hydraulic manifolds. Their approach focuses on:

• Optimized Fluid Pathways: Enhancing component efficiency without compromising structural integrity.
• Support Structure Minimization: Utilizing “wall-supported” features to reduce the need for removable supports, improving the final part’s performance and reducing weight.
• Enhanced Durability: Thickened pipe walls at connection points to withstand high lateral forces and reduce damage risks.

Case Study: ProtoTi’s Fluid Manifold

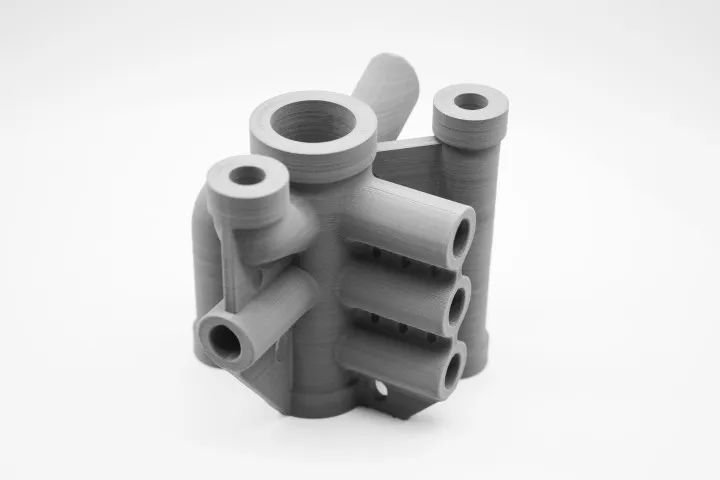

An example of ProtoTi’s work is shown in their 3D-printed fluid manifold:

• Innovative Design: The bottom walls feature 45° chamfered support walls and strategically placed holes to allow a more flexible design with minimal supports.
• Material Utilization: Thin walls under horizontal channels eliminate the need for additional support material, making these thin walls a permanent feature of the component.
• Durability: Reinforced pipe mouths counteract the lateral forces applied when hydraulic fittings are screwed in, minimizing potential damage.

Conclusion

Indirect metal 3D printing optimizes fluid manifolds in ways traditional manufacturing cannot match. ProtoTi’s application of PEP technology exemplifies this by producing defect-free, high-precision components in just a few days. These innovations not only meet the growing demands for lightweight and high-performance fluid systems but also reduce manufacturing costs and application risks.

Future Outlook

As industries increasingly seek to improve the performance and reduce the weight of fluid manifolds, 3D printing will see wider adoption. ProtoTi’s expertise in designing and manufacturing high-performance, complex metal and ceramic structures positions them to provide optimal solutions, supporting the high-quality development of 3D-printed fluid manifold applications across various sectors.
